Can You Replace a Floor-Mounted Toilet With a Wall-Hung One? Check These Things First

1. Start with the toilet and drain you have

Take photos before anything is removed. Note whether the waste goes into the floor or wall. Ask a plumber to trace where it joins the soil pipe. The new bowl outlet and drain must meet without a forced bend.

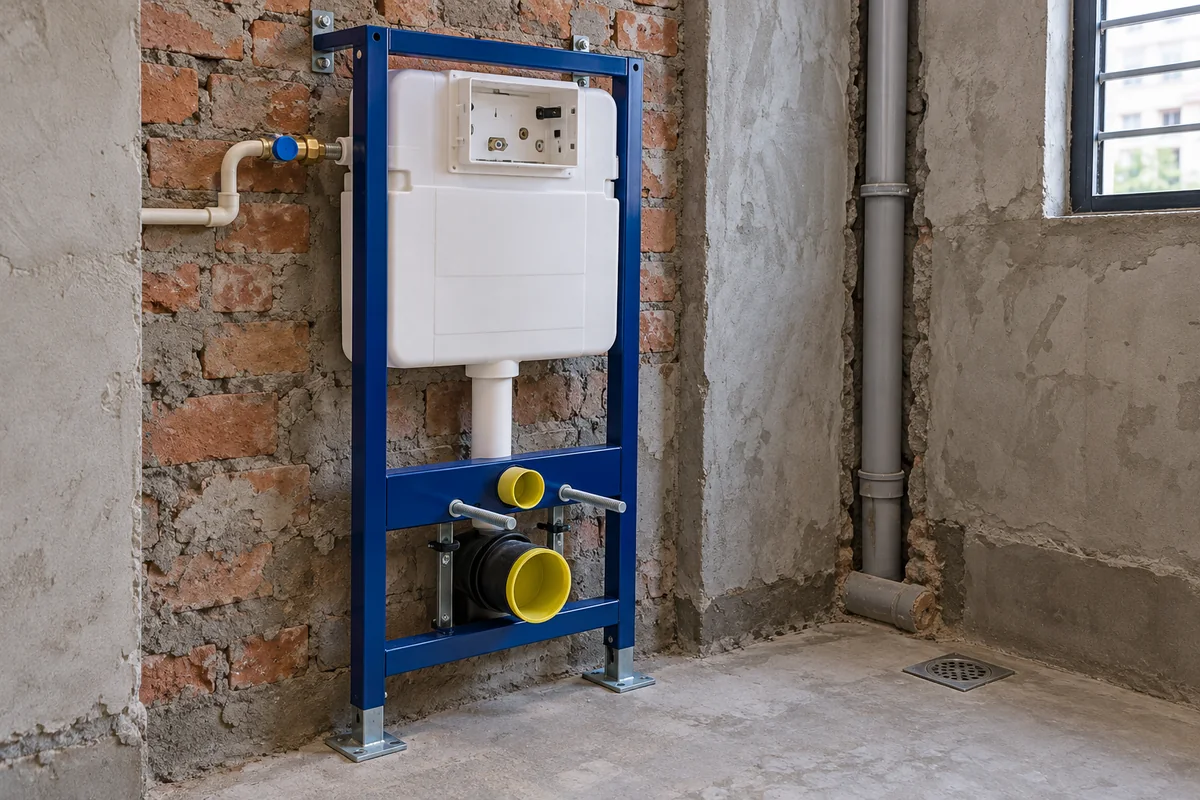

A wall-hung bowl does not hang from tiles. It uses a carrier frame fixed as the chosen system requires. The frame also holds the concealed cistern. Geberit lists different installation elements for solid and dry-wall work. Jaquar also sells wall- and floor-mounting frame options. The right one depends on the real wall, floor and drain.

Do not cut a beam, column or slab to make the frame or pipe fit. If the plan touches structure or a shared shaft, stop and get the needed approval and advice.

Further reading: Geberit India: prewall installation and flushing systems · Jaquar India: concealed cistern with floor-mounting frame

2. Allow space for the frame and its new wall

A retrofit often uses a new box or ledge in front of the old wall. This hides the frame and cistern. It also moves the front of the toilet into the room. Measure the full finished depth, not only the slim cistern body.

Mark the new wall, bowl edge, door swing, shower screen and walking space on the floor. Sit on a chair at the planned bowl position. Can the door close? Can you reach the health faucet?

A part-height ledge may give a small shelf. A full-height panel may look quieter. Either choice needs the correct frame, tile-bearing board and waterproofing detail. Choose the layout before buying the bowl, cistern or flush plate.

Further reading: Geberit India: prewall installation and flushing systems · Geberit India: concealed cisterns and service access

3. Match the bowl, frame, cistern and flush plate

Products that look similar may not fit together. Keep the exact model sheets for the bowl, frame, cistern and flush plate. Check fixing distances, outlet size, finished wall depth, flush type and every required connection part.

Some systems use front actuation. Some also allow top actuation. This changes where the flush plate and service opening sit. Jaquar also lists different drain connection sets. Ask the plumber to match the set to the real drain route.

Ask about local spare parts and who can service the model. Keep the model numbers and bills. A future repair is much easier when the hidden cistern can be identified.

Further reading: Geberit India: concealed cisterns and service access · Jaquar India: concealed cistern with floor-mounting frame · Kohler India: wall-mounted toilet installation guide

4. Keep the service opening usable

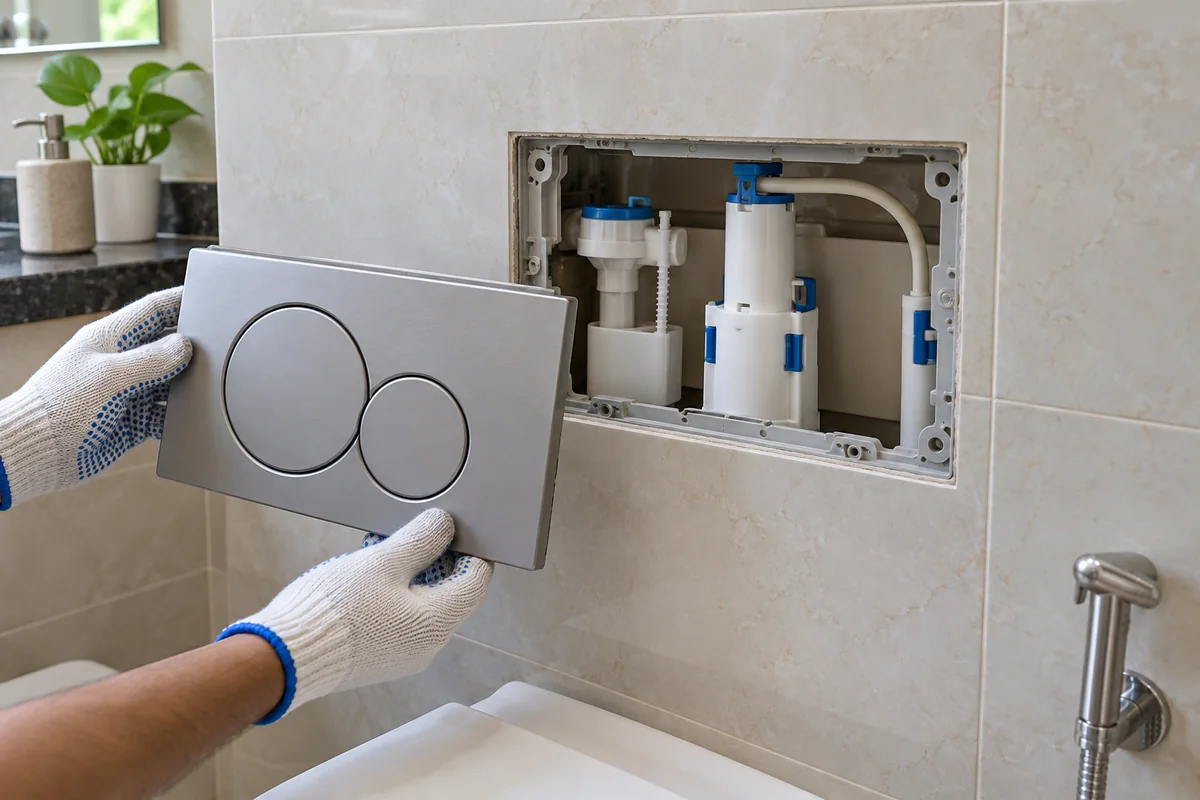

The flush plate opening is also the service opening on many concealed cisterns. Geberit says its fill and flush valves can be reached and removed through this opening. Kohler also says the opening must stay accessible after tiling.

Do not trap the opening behind a mirror, shelf or tile detail. Check that the plate can come off without hitting another fitting. Ask what can be repaired through it.

Before the wall closes, photograph the frame, water point, drain and model label. A photo helps later, but it does not replace the maker instructions or a proper test.

Further reading: Geberit India: concealed cisterns and service access · Kohler India: wall-mounted toilet installation guide

5. Test the hidden work before tiles go on

Test the water supply, cistern, flush and drain connections while the parts are visible. Fix leaks, movement or slow drainage before covering the frame.

Plan the toilet work with the bathroom waterproofing. Pipe entries, the new wall-to-floor joint and the area around the frame need the compatible detail for the chosen system. Keep the floor fall towards the drain. Do not let the new box create a place where water sits.

After finishing, check both flush settings, the bowl connection, water inlet, floor drain and stability. If the bowl moves or makes a new sound, stop and have it checked.

Read the bathroom waterproofing guide · Read the concealed plumbing guide

Further reading: Kohler India: wall-mounted toilet installation guide

6. Decide if the extra work is worth it

In a Raysan or Sargasan society flat, ask about work hours, debris, shared shafts and approval. In an older Gandhinagar sector home, a floor outlet may make the change larger. The site check decides this.

Ask for two written scopes if you are unsure: one for a suitable floor-mounted replacement and one for the wall-hung retrofit. Compare the full work, not only the bowl price. Include removal, drain changes, frame, cistern, board, waterproofing, tiles, flush plate, fitting, testing and waste removal.

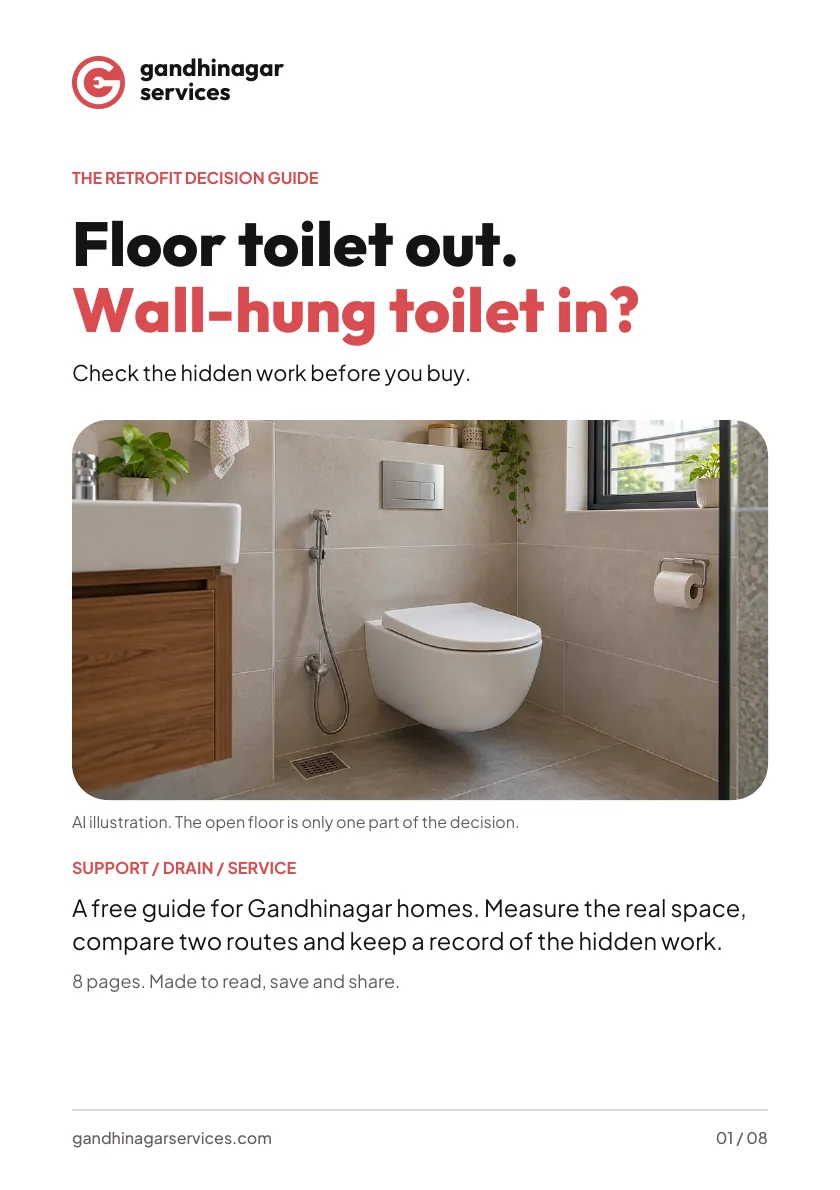

The free guide below gives you two retrofit examples, a measured-planning page and a quote record. Use it before buying, then keep the filled copy with the hidden-work photos.
